300Kwh 500Kw 1mw Solar Energy Storage System
Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects.
The energy storage containers can be used in the integration of various storage technologies and for different purposes.
Wyślij zapytanie
Wprowadzenie produktów
300Kwh 500Kw 1mw solar energy storage system
Benwei Container Battery
300Kwh 500Kw 1mw solar energy storage system
Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects.
The energy storage containers can be used in the integration of various storage technologies and for different purposes.
Product Specification:
| BENWEI Lithium Battery Energy Storage System Container | ||||
| Model | BW300KWH | BW500KWH | BW800KWH | BW1MW |
| Solar Panel | 300KW | 500KW | 800KW | 1MW |
| PV Combiner Box | Cutomized | Customized | Customized | Customized |
| Hybrid Solar Inverter | 300KW PCS | 500KW PCS | 800KW PCS | 1MW PCS |
| Utility Voltage Range | 380V/360V-440Vac; 480V/432V - 528Vac 50/45~55Hz; 60/55~65Hz | |||
| Solar Battery Packs | Lithium Battery Packs BMS/MBMS/EMS Protection; 2V GEL/OPzV Batteries Optional | |||
| Battery Racks | 4 Racks | 4 Racks | 6 Racks | 8 Racks |
| Data Monitor | Wifi Monitor/4G Terminal Monitor | |||
| PV Cable | 4/6mm2 | 4/6mm2 | 4/6mm2 | 4/6mm2 |
| Installation Brackets | Aluminium Alloy, Stainless Steel, Hot-dip Galvanized Steel,Ground Screw Mounting, Adjustable Brackets, Solar Tracker | |||
| Installation Site | Color Steel Tile/Tin Pitched Roof, Flat Roof, Cement/Soil Ground, Carport, etc | |||
| Installation Tools | Wire Cable Cutter & Stripper, Multi-Meter, Insulating gloves/covering etc | |||
| For installation manual, technical datasheet, inverter adjustment/testing, please send us an inquire | ||||
Battery Cell:Product Details：
The battery core adopts lithium iron phosphate battery-LFP 48173170E, the capacity is 120Ah, the nominal voltage is 3.2V, the working voltage range is 2.5~3.65V, the monthly self-discharge rate of the battery is ≤3%.
Battery Module:
The energy storage standard module consists of 24 single cells, the specification is 2P12S, the power is 9.216kWh, the nominal voltage is 38.4V, the working voltage range is 33.6~43.2V, and the mass is about 85kg.

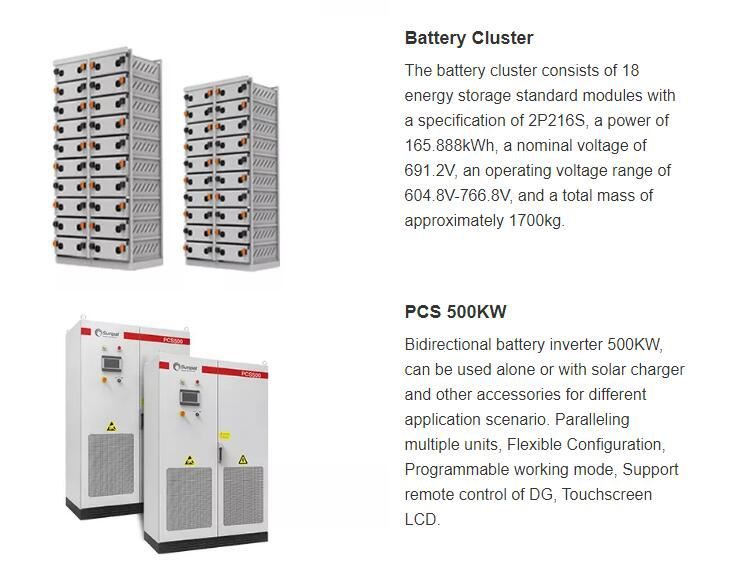

Battery Cluster:
The battery cluster consists of 18 energy storage standard modules with a specification of 2P216S, a power of 165.888kWh, a nominal voltage of 691.2V, an operating voltage range of 604.8V-766.8V, and a total mass of approximately 1700kg.
PCS 500KW:
Bidirectional battery inverter 500KW, can be used alone or with solar charger and other accessories for different application scenario. Paralleling multiple units, Flexible Configuration, Programmable working mode, Support remote control of DG, Touchscreen LCD.
Our project:
Package:
